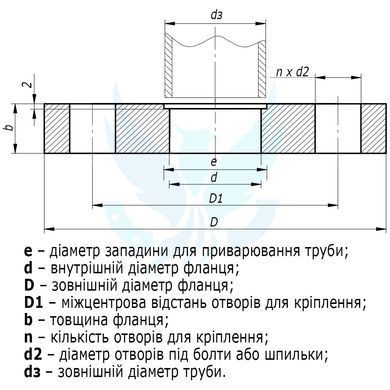

| Flange type | flat |
|---|---|
| Flange material | stainless steel |
| Flange material grade | AISI 304 (08Х18Н10) |
| Nominal diameter DN | 200 mm |
| Nominal pressure PN | 10 bar |
| Outer diameter of pipe | 204 mm |
| The diameter of the depression for welding pipe | 205 mm |
| Flange inner diameter | 200 mm |
| Outer diameter of flange | 340 mm |
| Center distance of mounting holes | 295 mm |
| Flange thickness (without mirror) | 24 mm |
| Number of holes for fasteners | 8 |
| Diameter of holes for fasteners | 22 mm |
| Nominal diameter of bolts or studs | М20 |
| Joining the pipe | welding |
| Flange design feature | with a cavity for welding |
| Standard | DIN 2576 |
